Vacuum Diagrams

Contributed By: Tom Collins

These vacuum diagrams are scanned out of the 1984/1985 Jeep Factory Service Manual (M.R. 253). As with most emissions-related diagrams, if you have a sticker under your hood, go by that, not these diagrams. These diagrams are ONLY valid for these years, no guarantees made for any other years.

These diagrams are really, really huge, and will take forever to download. We recommend you RIGHT-CLICK on these links and save them to your hard-drive.

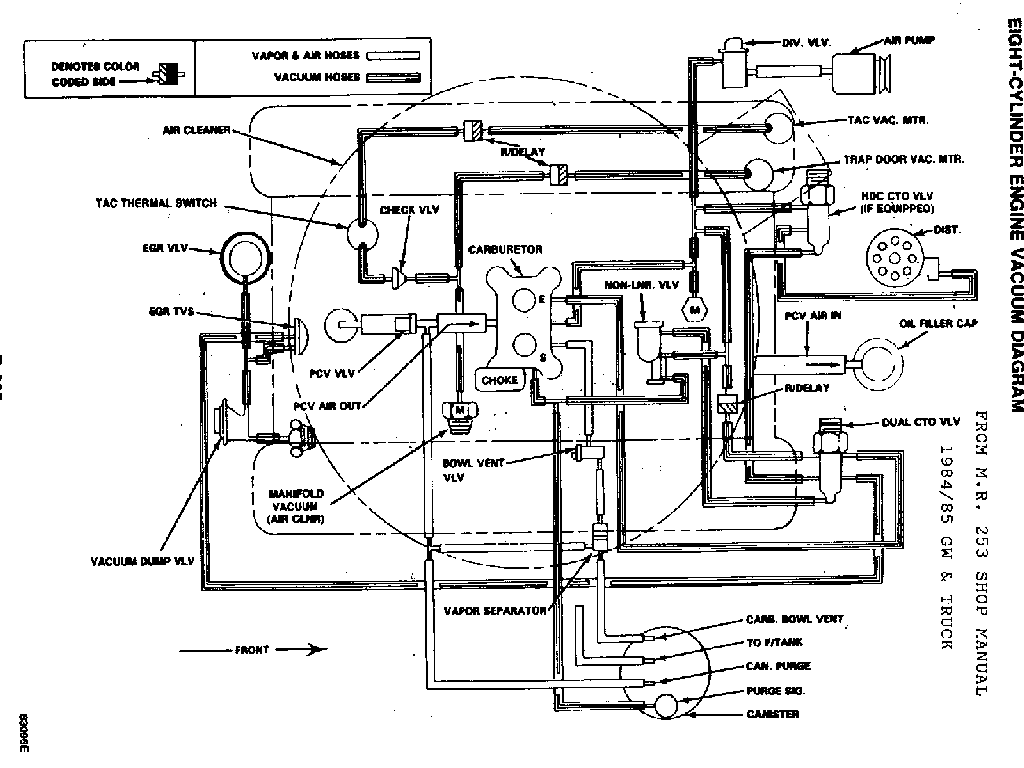

Eight-cylinder (360 CID) engine vacuum diagram
Six-cylinder (258 CID) engine vacuum diagram
