Rear Defogger Wiring Diagram

Contributed By: Mike Ahlmann

Mike notes:
There have been so many questions about the rear window defogger I thought I'd scan in the schematic. I have edited it a bit to remove extraneous items. Although this came from my '87 documentation, I have compared it to several other years and they all seem to be the same.

Click on the diagram to download the original, larger diagram as a .zip file

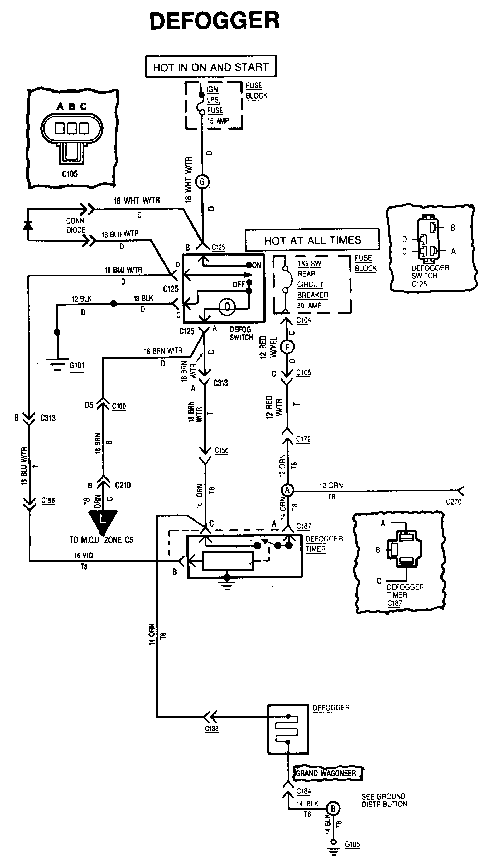

Rear Windows Defogger diagram - click to download full size diagram in zip format
