FSJ t-case skid plate!

Got worried about dropping this long underbelly on a rock and breaking the tcase...so i eased my fears a little with this...

38" wide at top and 34" at bottom. 1/4" plate with 1"x1"x1/8" squre tubing for support bolted in place with 8 grade 8 3/8" bolts threaded into frame

What ya think?



dont worry about that one extra bolt hole in the top...thats where i broke a tap off in the frame rail...
__________________
Kaiser - 1981 J20 115" WB - 5.3l/4l60E/np241c/3-link hp60 spooled/Leafs 14-bolt detroit/5.13's/40's

Build Thread

Fight Crime...Shoot Back.

ΜΟΛΩΝ ΛΑΒΕ
Reply With Quote
  #2
Old 01-14-2008, 07:56 PM
Jim Webb's Avatar
Jim Webb Jim Webb is offline
Member

Join Date: Aug 23, 2005
Location: Columbus, Ohio
Posts: 176
Looks good!! Now we need some pics of it installed!!

Jim
__________________
1987 Grand Wagoneer - 6" BJ's Offroad Lift kit, NP208 swap.
Reply With Quote
  #3
Old 01-14-2008, 08:15 PM
misfittom138's Avatar
misfittom138 misfittom138 is offline
Bleedin' Gasoline

Join Date: Dec 19, 2007
Location: Tempe, AZ
Posts: 1,492
Quote:
Originally Posted by Jim Webb
Looks good!! Now we need some pics of it installed!!

Jim

X2!
__________________
81 Wagoneer 360/727/208, lockrite rear/welded front,4.10s, 7"SOA/shackle flip,3" body,OBA,37" Iroks,chopped,caged,highsteer,hydro assist....
Reply With Quote
  #4
Old 01-14-2008, 08:30 PM
j20brett's Avatar
j20brett j20brett is offline
360 AMC

Join Date: Jul 05, 2006
Location: Katy, Texas
Posts: 2,963
haha i need some daylight for that...i dont get off work til 9:30 pm
__________________
Kaiser - 1981 J20 115" WB - 5.3l/4l60E/np241c/3-link hp60 spooled/Leafs 14-bolt detroit/5.13's/40's

Build Thread

Fight Crime...Shoot Back.

ΜΟΛΩΝ ΛΑΒΕ
Reply With Quote
  #5
Old 01-14-2008, 10:51 PM
etjeep's Avatar
etjeep etjeep is offline
Master Mechanic

Join Date: Oct 03, 2003
Location: Cary, NC
Posts: 839
Nice work! Its on my list to do. I was beside myself when I scratched my Atlas on some rocks (that did'nt sound right...LOL).
__________________
Later.....
Eric

___________
Eric Terjesen
'78 Wag
'03 Silverado 2500 Tow rig
Reply With Quote
  #6
Old 01-14-2008, 11:01 PM
Gambler68's Avatar
Gambler68 Gambler68 is offline
Rabble Rouser

Join Date: Feb 29, 2004
Location: Ignacio, Colorado, USA
Posts: 14,081
you should vend those nice work!

I worked for a fab place for a few weeks before they packed up and left for where they came from (mutter) and their rockcrawler had this white plasticy stuff on their skidplates..it'd slide right over rocks and barely scratch it. Sweet stuff.
__________________
1979 Chero S "Sundog" 1979 Chero S "Hammer"
1968 327 J3000 1978 J10SWB
The Edge... there is no honest way to explain it because the only people who really know where it is are the ones who have gone over.
Hunter S. Thompson .

Reply With Quote
  #7
Old 01-14-2008, 11:06 PM
j20brett's Avatar
j20brett j20brett is offline
360 AMC

Join Date: Jul 05, 2006
Location: Katy, Texas
Posts: 2,963
haha yessss those teflon pads, or cutting board material stuff, is great for sliding...but VERY expensive in bulk.

I would consider building these if there is any interest. no clue on a price as this was steel i had lying around...and its about 70#'s

Thanks for the comments!
__________________
Kaiser - 1981 J20 115" WB - 5.3l/4l60E/np241c/3-link hp60 spooled/Leafs 14-bolt detroit/5.13's/40's

Build Thread

Fight Crime...Shoot Back.

ΜΟΛΩΝ ΛΑΒΕ
Reply With Quote
  #8
Old 01-15-2008, 08:09 AM
janie's Avatar
janie janie is offline
Dexron Impaired

Join Date: Aug 11, 2001
Location: Mallards Roost, TX
Posts: 8,270
Looks great Brett
__________________
He is your friend, your partner, your defender, your dog. Faithful and true to the last beat of his heart. You owe it to him to be worthy of such devotion.
Reply With Quote
  #9
Old 01-15-2008, 08:15 AM
Dmntxn77's Avatar
Dmntxn77 Dmntxn77 is offline
Hey watch this...

Join Date: Nov 19, 2004
Location: Gig Harbor, WA
Posts: 8,327
Looks tough...

Do you plan to put any drain holes in it?
Reply With Quote
  #10
Old 01-15-2008, 10:20 AM
Dr Teeth Dr Teeth is offline
Grease Monkey

Join Date: Nov 14, 2006
Location: Redding, California
Posts: 381
Looks good!

How far forward does the skid plate cover? I was thinking of making one of these at some point that included a hoop for the front driveline.... The guy that rebuilt my tranny says he's seen alot of these jeeps (with stock front driveshafts like mine) break loose the front driveline, then it whips over and takes out the aluminum that holds the pan on the tranny... tranny is now fubar and has to be replaced. I don't plan on heavy wheelin, but it sure got me thinking. Probably wouldn't really even need a full hoop, maybe just a vertical plate right next to the tranny pan as protection just in case.

Pics installed please!

Thanks,
Todd
Reply With Quote
  #11
Old 01-15-2008, 12:34 PM
j20brett's Avatar
j20brett j20brett is offline
360 AMC

Join Date: Jul 05, 2006
Location: Katy, Texas
Posts: 2,963
Robert: No drain holes...i hate mud. And id rather a nice smooth surface underneath. Its really easy to unbolt if i need to clean it out.

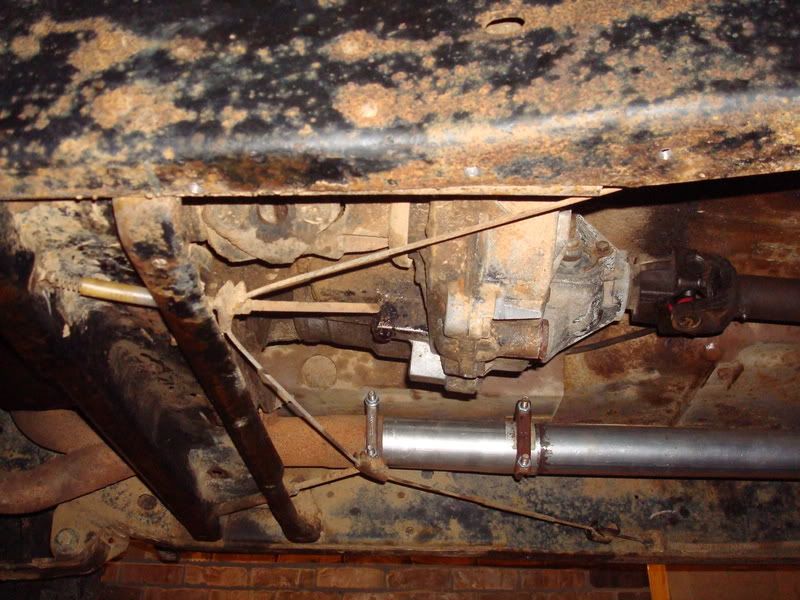

Dr Teeth: Here is the area it covers. From the tranny crossmember back to just past the tcase yoke.

__________________
Kaiser - 1981 J20 115" WB - 5.3l/4l60E/np241c/3-link hp60 spooled/Leafs 14-bolt detroit/5.13's/40's

Build Thread

Fight Crime...Shoot Back.

ΜΟΛΩΝ ΛΑΒΕ
Reply With Quote
  #12
Old 01-18-2008, 05:06 PM
j20brett's Avatar
j20brett j20brett is offline
360 AMC

Join Date: Jul 05, 2006
Location: Katy, Texas
Posts: 2,963

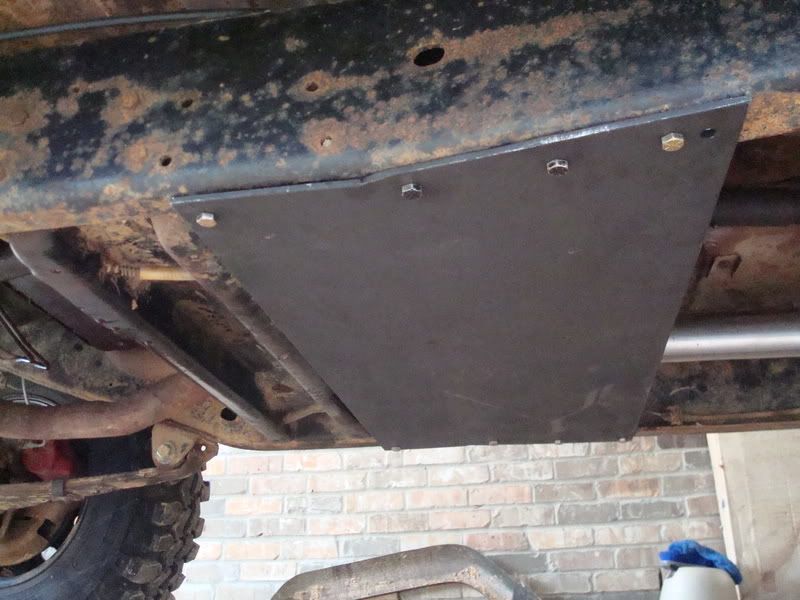

finally got around to mounting it today...

__________________
Kaiser - 1981 J20 115" WB - 5.3l/4l60E/np241c/3-link hp60 spooled/Leafs 14-bolt detroit/5.13's/40's

Build Thread

Fight Crime...Shoot Back.

ΜΟΛΩΝ ΛΑΒΕ
Reply With Quote
  #13
Old 01-18-2008, 05:11 PM
Charlie_B's Avatar
Charlie_B Charlie_B is offline
Gear Head

Join Date: Dec 18, 2005
Location: Lisbon, Maine
Posts: 644
looks slick. Nice work!

I can say that I was impressed by the lack of components hanging low on my rig when I bought it. Funny seeing these Ford guys running around with the t-case hanging about a foot lower than the frame.

I guess you cant really have too much protection. Again, nice job!
__________________
'79 Cherokee "Goldie" - under the knife Part I; Part II
Currently: body is on, now finishing undercarriage
'92 Cherokee "Rusty" - 3" lift, 31s
'05 Evo MR "Eve"
Reply With Quote
  #14
Old 01-18-2008, 05:15 PM
j20brett's Avatar
j20brett j20brett is offline
360 AMC

Join Date: Jul 05, 2006
Location: Katy, Texas
Posts: 2,963
Thanks! Its needed for the place that im going in a couple weeks...lots of sharp pointy rocks to hard up on...and i like my t-case without holes in it
__________________
Kaiser - 1981 J20 115" WB - 5.3l/4l60E/np241c/3-link hp60 spooled/Leafs 14-bolt detroit/5.13's/40's

Build Thread

Fight Crime...Shoot Back.

ΜΟΛΩΝ ΛΑΒΕ
Reply With Quote
  #15
Old 01-18-2008, 06:54 PM
red mistress's Avatar
red mistress red mistress is offline
304 AMC

Join Date: Sep 13, 2007
Location: TX
Posts: 2,291
clocking

That's bulletproof & no clocking required to have a flat belly.
__________________
67 Gladiator 15K J3000 AMC 327, PTO, 35" BFG's
69 Jeepster 8701 convertible
80 Honcho Sportside
82 CJ-8 75K org SR decals
82 Cheroeke Laredo 24K
83 CJ-8 50K 401, ARB60's, F&R Winch, 38"
84 CJ-7 38K Garnet Int., Jeep 8274 winch
84 CJ-8 mud Scrambler
87 J 20 36K smooth alum camper & boat rack.
Reply With Quote
  #16
Old 01-18-2008, 10:13 PM
etjeep's Avatar
etjeep etjeep is offline
Master Mechanic

Join Date: Oct 03, 2003
Location: Cary, NC
Posts: 839
Quote:
Originally Posted by j20brett
...and i like my t-case without holes in it

....works better that way too!

Looks nice...do you have enough clearance for the rear driveshaft? hard to tell from the pic at that angle.

Also, the drain hole comment is a good one. I have a 1/4" skid plate covering my rear mounted gas tank. My drain holes were not big enough and clogged up with mud causing a little surface rust on the under side. I caught it in time and I'll fix that before I re-install it. Your horizontal stiffeners will catch every bit of mud thrown up there.
__________________
Later.....
Eric

___________
Eric Terjesen
'78 Wag
'03 Silverado 2500 Tow rig
Reply With Quote
  #17
Old 01-18-2008, 10:17 PM
FSJ Guy FSJ Guy is offline

Join Date: Mar 20, 2005
Location: Colorado
Posts: 10,061
Wow. With 1/4" plate, I don't think you needed those "stiffener" bars at all!
__________________
Ethan Brady
1987 Grand Wagoneer, slightly longer than stock.

www.bigscaryjeep.com

Don't mess with me. I once killed a living hinge.
Reply With Quote
  #18
Old 01-18-2008, 10:54 PM
etjeep's Avatar
etjeep etjeep is offline
Master Mechanic

Join Date: Oct 03, 2003
Location: Cary, NC
Posts: 839
Quote:
Originally Posted by FSJ Guy
Wow. With 1/4" plate, I don't think you needed those "stiffener" bars at all!

I decide to put some stiffener bars on mine as well as some stops to prevent it from driving up into my gas tank if I land on a rock dragging over a ledge, but you're right, it is very strong. I'll have to get some pics to show you what I mean.
__________________
Later.....
Eric

___________
Eric Terjesen
'78 Wag
'03 Silverado 2500 Tow rig
Reply With Quote
  #19
Old 01-18-2008, 11:15 PM
funwheeling's Avatar
funwheeling funwheeling is offline
Master Mechanic

Join Date: Nov 21, 2004
Location: Central SC
Posts: 1,262
Did you weigh it??
__________________
1991 Grand Wag "The Phoenix!" IS back from the ashes!!!
My Yahoo
BJ's 6" lift
Holley Truck Avenger 670CFM
Mickey Thompson Wheels
Dick Cepeck FC-II
Killer 32 Nurf Bars
Comp Cam 260H
MSD Distributor, Coil and Controller
Edlebrock Headers
Dual Exhaust 2 Flowmaster 50's
Reply With Quote
  #20
Old 01-18-2008, 11:41 PM
stumpjumper3's Avatar
stumpjumper3 stumpjumper3 is offline
Grease Monkey

Join Date: May 24, 2007
Location: Junction City Oregon
Posts: 466
Pretty sick skidplate brett. Me likey. If you ever decide to make them in quantities, let me know, i could definetly see one o them on mine. Nice work
