My Tech How-To for the Carbon Vapor Canister

So, I got tired of rough idle, questionable acceleration and surging and have investigated the purge valve inside the vapor canister. It looks like swiss cheese so, there's my vacuum leak. You can't find replacement valves for these things so you're stuck with doing one of several things. Putting "shoe goo" on the holes in the valve (tried that and now it's worse), figuring how to duplicate one out of similar material (don't want the hassle), finding a junk yard dog (without a holey purge... yah good luck), disconnecting the entire can (too much gas odor in the cab) or, trying to locate a close copy for little $$.

Sooo. I went over to Rockauto.com and found a match for a 1991 Grand Wagoneer. It's a Standard Motor Products # CP 3045. I believe it's got either 3 or 4 ports, two for vacuum and perhaps one for inlet emissions. The original has 4 ports however, I have no reason to believe that this will not work if it turns out to be truly 3. I figure I should be able to tee in my gas tank and carb vent together to plug into the passive inlet. The two vac ports should match my feeds from ported vac and from the PCV.

Best of all is that this thing only costs $30. It should arrive late this week. When I get it in, I'll post pics and any modifications that I might have to make to make it work. I know this subject has been hotly contested, especially on where to get a replacement...

Quote:
Originally Posted by scotty1998
Could you please update the following link since I don't have access rights to do it myself?

Apparently, Standard Motor products discontinued the part number that the article refers to, CP3045.

I found a similar NAPA Echlin number that can be used instead CRB 220052

Thanks for your help.


http://www.ifsja.org/forums/vb/showthread.php?t=106051
__________________
1987 Jeep Grand Wagoneer
Stock Everything
AMC 360, 2-BBL Motorcraft



Last edited by Tad : 04-26-2010 at 12:34 PM.
Reply With Quote
  #2
Old 07-13-2009, 11:53 PM
BlacksheepGW's Avatar
BlacksheepGW BlacksheepGW is offline
Member

Join Date: Mar 08, 2009
Location: Vancouver, WA
Posts: 106
Pics and a write up! I am about to order one myself to fix some issues. Thank you for this post, it solves a few issues I am looking at!
Reply With Quote
  #3
Old 07-18-2009, 10:36 AM
scotty1998's Avatar
scotty1998 scotty1998 is offline
Master Mechanic

Join Date: Apr 21, 2008
Location: Watkins Glen, NY
Posts: 912
If you've experienced poor or rough idle, quirky acceleration, strange responsiveness to throttle, surging, and a never ending balance of power between too rich or too lean, then this write-up could be for you.

One of the things that's always bothered me about emissions on our Jeeps is an inability to find a match for the OEM Carbon Vapor Canister. What is a vapor canister you say? Well, it's that strange looking little black cylinder that sits on the passenger side fender wall with four hoses sticking out of it.



It's function is actually an important one. It captures fugitive fuel vapors that come from our gas tanks and carburetor during expansion. Fuel is volatile after all and unless something is there to control these vapors, the result is an endless trail of gasoline odor under the hood, in the cab, in your clothes, in your garage, three cars down at the shopping center... you get the idea. Anyhow, the canister is filled with carbon which helps to reduce odor by adsorption... topic for another day I suppose but the primary principle is, vapors in, no vapors out. These vapors are contained until you fire your rig up and that's where the vacuum system comes in. A spring loaded diaphragm lies under the cap of the vapor canister. Vacuum draws the diaphragm up and vapors are pulled out of the canister and through the the PCV system and into your intake. Voila, a mini-air treatment system.

The problem lies with that diaphragm. If you open up the cap on your OEM can, you'll find a spring, a ring shaped guide and a swiss cheesy looking rubber circle. Should it have holes in it? No and guess what? That seems to be a good source for a vacuum leak don't you think? Think that could cause rough idle, weird acceleration, engine to run lean, and a host of other problems? You bet.

Now, for those of you who have already delved into this and have gone down to the local parts store expecting a quick replacement, you'll receive either blank stares, or a large catalog with lots of these little monsters to choose from. Problem is, they're mostly for modern cars and can range anywhere from $20 to $200. Where to start? No idea? Read on...

I happened to be on RockAuto.com the other day and typed in every production year of the late model Grand Wagoneer that I could think of. Nothing for 87 - 90 but I seemed to hit gold for a 91. But wait... the listing was for a 91 - 93 Grand Waggy? An obvious error... do I take a chance? Yes and I placed my order.

For $30, here's what I got. A Standard Motor Products #CP3045 Vapor Canister. Pulling it out of the box I noticed that it wasn't an exact match. Do I send it back? No. Retrofit time. In the photo below, you'll see our OEM can on the right and the new one on the left.





Here's a side by side view





A view from the bottom. Note that the old vent with air filter is no longer routed this way on the new one. The bottom on the new can is completely sealed.




Here is a view showing a comparison of the diaphragm components. They are a different design but their function is basically the same. Note that there is an extra part on the new side. A breather cap.


------------------------------------------------------------------------

Now for the retrofit.

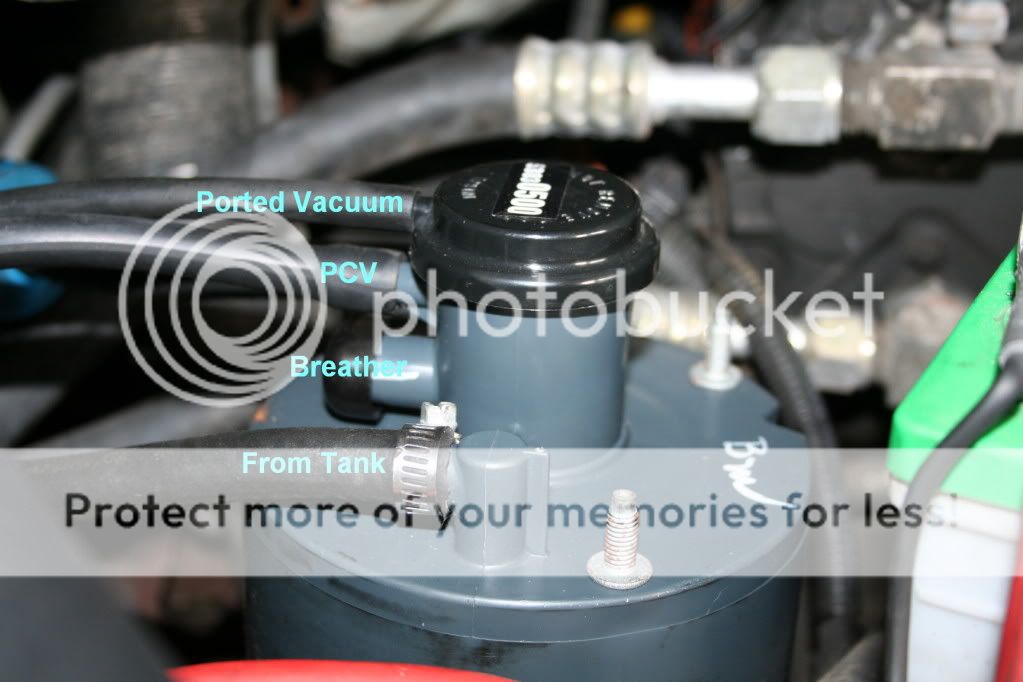

Looking at the new can from the front we see several things. There are two ports on the extreme left side and the extreme right side. When you pull the can out of it's new box, these ports will have plugs molded into them from the factory. These will need to be removed. I took a drill bit and just drilled them out. Took me maybe 3 minutes. Careful not to overdrill or you'll poke through the Nipples. After this is completed, suddenly, you'll realize that this new can is starting to resemble the ports of the old can. There's only one exception now however. You'll note the largest port beneath the PCV connection isn't a hose port at all. It's a breather which replaces the old breathing system on the bottom of the old one. There's an X shaped cap that fits in here to keep dirt out. Insert this cap and now you have everything you need to make a bolt in swap.




Here are photos of the finished product. It really wasn't a very difficult project at all as most of the time was spent trying to figure out what each port was for since there are no instructions that come with these things. In addition, I had to put some new hose on a few of the leads since they were a little too short to stretch to the new can. The nipples are set back a few inches behind the can as opposed to the old one where they lean out over the can's front.

The end result? My idle has completely smoothed out, no more surging, and my acceleration is smooth as butter. Please PM me if you have anything to change or add. Thanks and good luck!
