Instrument Illumination Sockets???

Are the illumination bulb holders in the 1981-85 instrument panel different from other wedge bulb holders?

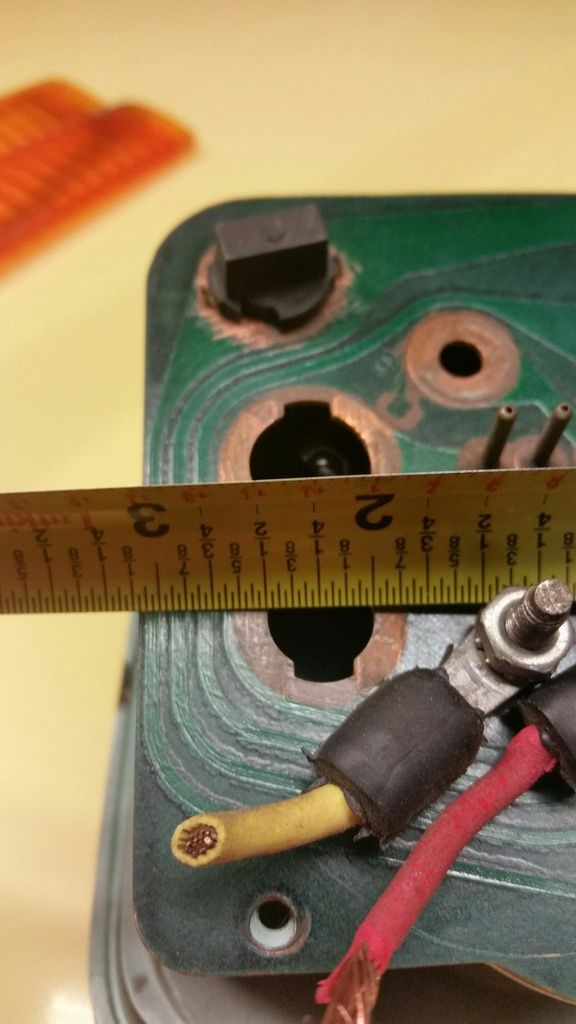

On my '85, they are blue, and none of the other holders I have seem to fit.




Stealing pictures from other threads.
1974 circuit board appears to have typical 1/2" socket in the upper left.


1984 (deckroid's)


1978
__________________
'85 Grand Wagoneer
360 727auto, NP229
body by beer (PO)
carries wood inside
no "wood" outside
My other car is a fish
Reply With Quote
  #2
Old 12-06-2018, 12:07 PM
nograin's Avatar
nograin nograin is offline
304 AMC

Join Date: Dec 19, 2000
Location: Philadelphia, Pa., USA
Posts: 1,938
My best guess is the lugs are wider.
__________________
'85 Grand Wagoneer
360 727auto, NP229
body by beer (PO)
carries wood inside
no "wood" outside
My other car is a fish
Reply With Quote
  #3
Old 12-06-2018, 02:30 PM
Cecil14's Avatar
Cecil14 Cecil14 is offline
AMC 4 OH! 1

Join Date: Jan 22, 2001
Location: Carson City, NV
Posts: 4,951
On my '83, I'm pretty sure (I'll have to dig through the harness in a bit to confirm 100%) that the warning lights (Brake, 4wd, etc.) are push in sockets, not the twist in like the turn signals and gauge lighting. With the gauge board and twist sockets in front of me, the twist sockets will not fit securely in the warning light holes.


aa
__________________
Anthony

1983 J-10 - 4.6L(MPFI)/CS130D/Hydroboost/NV3550/D300/44/44/3.54/Disc-Disc/32s/42 gallon 'burb tank
Reply With Quote
  #4
Old 12-06-2018, 04:00 PM
Ristow Ristow is offline

Join Date: Jan 20, 2006
Location: The Great Googley Moogley Midwest.
Posts: 16,884
yes,there are different sizes. you can see the holes are different in the pics you posted.
__________________
Quote:
Originally Posted by Hankrod
Ristows right.................again,




Quote:
Originally Posted by Fasts79Chief
... like the little 'you know what's' that you are.




Quote:
Originally Posted by Fasts79Chief
I LOVE how Ristow has stolen my comment about him ... "Quoted" it ... and made himself famous for being an ***hole to people. Hahahahahahahahahha!


→ Where the kids hang out...

fsjbuilder.org come for the mindless chat,stay for the hand drawn emoticons.

It's like you're unraveling a big cable-knit sweater that someone keeps knitting...and knitting...and knitting...and knitting...
Reply With Quote
  #5
Old 12-06-2018, 04:13 PM
nograin's Avatar
nograin nograin is offline
304 AMC

Join Date: Dec 19, 2000
Location: Philadelphia, Pa., USA
Posts: 1,938
Agree. Some of them - the indicators - have 5/8" dia holes.

I tried using what I thought was a standard socket for the 1/2" holes and it didn't work. Maybe I've got some notes from when I took that photo. Only missing one, but its annoying.
__________________
'85 Grand Wagoneer
360 727auto, NP229
body by beer (PO)
carries wood inside
no "wood" outside
My other car is a fish
Reply With Quote
  #6
Old 12-06-2018, 05:01 PM
Cecil14's Avatar
Cecil14 Cecil14 is offline
AMC 4 OH! 1

Join Date: Jan 22, 2001
Location: Carson City, NV
Posts: 4,951
I'm sure I have some extras in a spare harness. I'll dig through my pile of wiring in a bit. Shoot me a PM and I'll let you know what I find. If I've got what you need, I'll throw it in the mail tomorrow.
