have you ever seen these? grand wagoneer pie pan lights

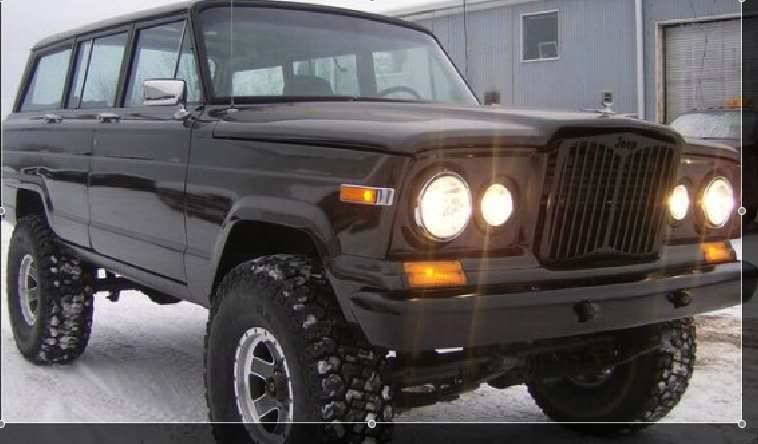

what are these middle lights that should be pie pans. anyone ever seen this type of setup


Last edited by wagoneerfan82 : 04-08-2011 at 08:41 PM.
Reply With Quote
  #2
Old 04-08-2011, 07:00 PM
Showngo's Avatar
Showngo Showngo is offline
Gear Head

Join Date: Aug 19, 2010
Location: Tennessee
Posts: 504

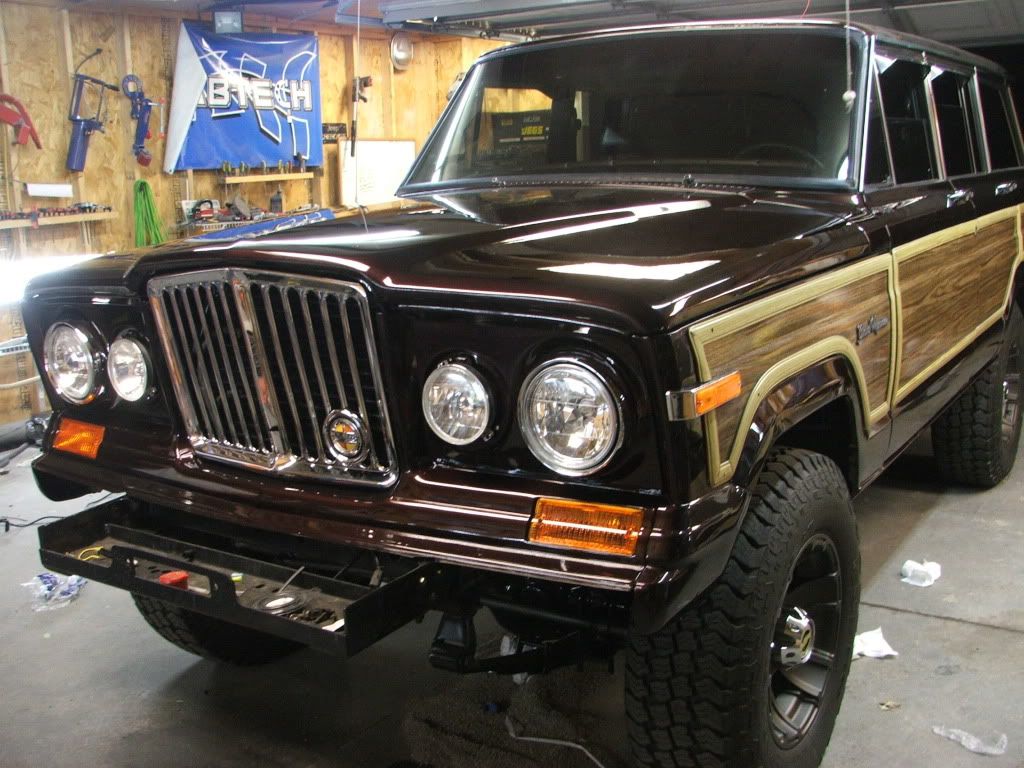

Like these?
__________________
90 Wagoneer w/65 Wag.grille,Cj7 lights,360 AMC w/edelbrock perf.cam,lifters,timing chain,intake,carb,and,headers,custom SS exhaust w/magnaflow muffler,Black cherry pearl w/cordovan interior.Rusty's 4" lift w/KMC revolver bronze 17 x 9 wheels ,& Toyo MT 295-70-17 tires(33").http://s220.photobucket.com/albums/d...nd%20Wagoneer/
Reply With Quote
  #3
Old 04-08-2011, 07:05 PM
wagoneerfan82's Avatar
wagoneerfan82 wagoneerfan82 is offline
Member

Join Date: Apr 03, 2011
Location: MANTECA CA
Posts: 80
Quote:
Originally Posted by Showngo
Like these?


thats way beyond nice. how would i go about doing that.
Reply With Quote
  #4
Old 04-08-2011, 07:07 PM
Chrome's Avatar
Chrome Chrome is offline
Ph.D in Redneckology

Join Date: Aug 30, 2002
Location: Tupelo, Mississippi
Posts: 8,526
Quote:
Originally Posted by wagoneerfan82
how do i put up pictures on here also.

www.photobucket.com is yo friend.
__________________
..,=====,o00o
//__l_l_,\____\,__
l_---\_l__l---0
lllllll0
_(o)_)__(o)_)--o-)_)___


1983 Cherokee Chief Laredo W/T 360/auto

1982 Cherokee Chief W/T 360/4 speed

I now have an official Muslim name...Ochroma Bin Polishin.

Click link for pics of restored Full Size Jeeps (on last page)
http://www.cardomain.com/ride/363842\
Reply With Quote
  #5
Old 04-08-2011, 07:11 PM
Showngo's Avatar
Showngo Showngo is offline
Gear Head

Join Date: Aug 19, 2010
Location: Tennessee
Posts: 504
I also used chrome trim rings to finish it off.I used modified 1960 Lincoln buckets w/62 Olds Delta 88 trim rings.I also had to move the condenser and drier to the drivers side about 3" because I used H-4 conv. lights that are a lot deeper than reg 5-3/4 lights. I have the pics of the buckets if you need them.
__________________
90 Wagoneer w/65 Wag.grille,Cj7 lights,360 AMC w/edelbrock perf.cam,lifters,timing chain,intake,carb,and,headers,custom SS exhaust w/magnaflow muffler,Black cherry pearl w/cordovan interior.Rusty's 4" lift w/KMC revolver bronze 17 x 9 wheels ,& Toyo MT 295-70-17 tires(33").http://s220.photobucket.com/albums/d...nd%20Wagoneer/
Reply With Quote
  #6
Old 04-08-2011, 07:13 PM
Showngo's Avatar
Showngo Showngo is offline
Gear Head

Join Date: Aug 19, 2010
Location: Tennessee
Posts: 504

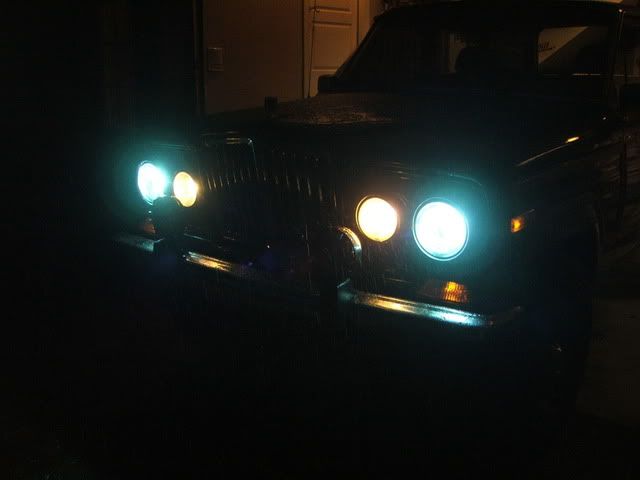

This is them on wired to the brights,w/a relay to keep the low beams on.I used 3000K 100 watt bulbs for the yellow look.great in inclement weather.
__________________
90 Wagoneer w/65 Wag.grille,Cj7 lights,360 AMC w/edelbrock perf.cam,lifters,timing chain,intake,carb,and,headers,custom SS exhaust w/magnaflow muffler,Black cherry pearl w/cordovan interior.Rusty's 4" lift w/KMC revolver bronze 17 x 9 wheels ,& Toyo MT 295-70-17 tires(33").http://s220.photobucket.com/albums/d...nd%20Wagoneer/
Reply With Quote
  #7
Old 04-08-2011, 08:10 PM
Cecil14's Avatar
Cecil14 Cecil14 is offline

Join Date: Jan 22, 2001
Location: Carson City, NV
Posts: 5,094
Showngo -

If you could throw up all the pics of this project plus the make/model (think you covered that up a bit) of all the parts you used everyone would be ecstatic! There are a lot of us that have looked at doing something like this, but gathering the right parts to make it look good has always been a chore.


Thanks,


aa
__________________
1983 J-10 - 4.6L(MPFI)/CS130D/Hydroboost/NV3550/D300/44/44/3.54/Disc-Disc/32s/42 gallon 'burb tank
Reply With Quote
  #8
Old 04-08-2011, 08:33 PM
wagoneerfan82's Avatar
wagoneerfan82 wagoneerfan82 is offline
Member

Join Date: Apr 03, 2011
Location: MANTECA CA
Posts: 80
Quote:
Originally Posted by Cecil14
Showngo -

If you could throw up all the pics of this project plus the make/model (think you covered that up a bit) of all the parts you used everyone would be ecstatic! There are a lot of us that have looked at doing something like this, but gathering the right parts to make it look good has always been a chore.


Thanks,


aa

I second that! Please!
Reply With Quote
  #9
Old 04-08-2011, 09:13 PM
Showngo's Avatar
Showngo Showngo is offline
Gear Head

Join Date: Aug 19, 2010
Location: Tennessee
Posts: 504
Quote:
Originally Posted by Showngo
I also used chrome trim rings to finish it off.I used modified 1960 Lincoln buckets w/62 Olds Delta 88 trim rings.I also had to move the condenser and drier to the drivers side about 3" because I used H-4 conv. lights that are a lot deeper than reg 5-3/4 lights. I have the pics of the buckets if you need them.
__________________
90 Wagoneer w/65 Wag.grille,Cj7 lights,360 AMC w/edelbrock perf.cam,lifters,timing chain,intake,carb,and,headers,custom SS exhaust w/magnaflow muffler,Black cherry pearl w/cordovan interior.Rusty's 4" lift w/KMC revolver bronze 17 x 9 wheels ,& Toyo MT 295-70-17 tires(33").http://s220.photobucket.com/albums/d...nd%20Wagoneer/
Reply With Quote
  #10
Old 04-08-2011, 09:40 PM
Showngo's Avatar
Showngo Showngo is offline
Gear Head

Join Date: Aug 19, 2010
Location: Tennessee
Posts: 504

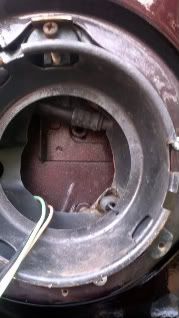

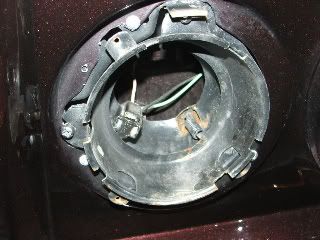

This is how I moved the spring retainer.You don't have to do this if your running stock style lights.Top pick is pass side bucket cut out to clear A/C drier
__________________
90 Wagoneer w/65 Wag.grille,Cj7 lights,360 AMC w/edelbrock perf.cam,lifters,timing chain,intake,carb,and,headers,custom SS exhaust w/magnaflow muffler,Black cherry pearl w/cordovan interior.Rusty's 4" lift w/KMC revolver bronze 17 x 9 wheels ,& Toyo MT 295-70-17 tires(33").http://s220.photobucket.com/albums/d...nd%20Wagoneer/

Last edited by Showngo : 04-08-2011 at 09:42 PM.
Reply With Quote
  #11
Old 04-08-2011, 09:45 PM
Showngo's Avatar
Showngo Showngo is offline
Gear Head

Join Date: Aug 19, 2010
Location: Tennessee
Posts: 504
Here is with the trim rings on.
__________________
90 Wagoneer w/65 Wag.grille,Cj7 lights,360 AMC w/edelbrock perf.cam,lifters,timing chain,intake,carb,and,headers,custom SS exhaust w/magnaflow muffler,Black cherry pearl w/cordovan interior.Rusty's 4" lift w/KMC revolver bronze 17 x 9 wheels ,& Toyo MT 295-70-17 tires(33").http://s220.photobucket.com/albums/d...nd%20Wagoneer/
Reply With Quote
  #12
Old 04-08-2011, 11:26 PM
wagoneerfan82's Avatar
wagoneerfan82 wagoneerfan82 is offline
Member

Join Date: Apr 03, 2011
Location: MANTECA CA
Posts: 80
I LOVE IT WITH THE TRIM RINGS ON LIKE THAT. I LIKE YOUR GRILL BETTER THOUGH. WITH THE BADGE.
__________________
87 GW
Reply With Quote
  #13
Old 04-09-2011, 08:12 AM
smogdredd's Avatar
smogdredd smogdredd is offline
Grease Monkey

Join Date: Jul 19, 2010
Location: Apple Valley Ca.
Posts: 464
Very nice

I used 59 chrysler buckets and fogs from a BMW, will have to make the bezels.
__________________
'63 wagoneer '87 360 running gear except T case (207), warn hubs, 3.56 diffs and EFI Holley pro-jection using ford cfi throttle body Stock dist. with four wire HEI module.

'67 Scout 152cid w/EFI and turbo also My own a little help from Chrysler. I am a fabricator, I make stuff up!

facebookGGAutoCare
Reply With Quote
  #14
Old 04-09-2011, 08:39 AM
drlocke's Avatar
drlocke drlocke is offline
Roadside Mechanic

Join Date: Dec 29, 2003
Location: Western MA
Posts: 9,725
They all look to be the outcome of a doctoring job. Good one at that. And back when Wagoneers really had rhino grilles there wasn't any smaller version for them to be Grand relative thereto.
Reply With Quote
  #15
Old 04-10-2011, 03:44 AM
tazjeeper tazjeeper is offline
Gear Head

Join Date: Apr 05, 2010
Location: NB Canada
Posts: 642
Quote:
Originally Posted by wagoneerfan82
what are these middle lights that should be pie pans. anyone ever seen this type of setup


I know this jeep.
thats Ted's, head tech from National 4wd fredricton NB. Canada
very nice rig, he spent a lot of time and money on it. built it for tow rig for his wife to drive.
here is a link to the build thread on Nova Scotia jeep club site.
http://nsjc.proboards.com/index.cgi?...y&thread=31018
here is a pic of an old waggy that I was going to buy the front off of last year but never had time to make the 5hr drive. it had lights in it. someone told me on here at the time they were factory foglights if my memory is correct.


as far as the grill in Ted's jeep he had it made. after spending big big$$$'s doing the jeep over he just did not want to fork out hundreds for a grill on ebay. he and his wife wanted it black anyway.
