1977 J10 Paint Scheme

Hey Guys,
My 1977 J10 is primered up and ready to get into the paint booth. I have been doing some research on this site and on the google images and can't seem to find a consistent pattern for side stripe.

I'm planning on painting the truck two-tone. Blue up top and white on the bottom. I wanted to put in a double stripe in Burgundy on the side to give it that awesome 70s feel.

I'm inclined to follow the body lines, but the decals that were on there dipped just before the headlights, completely ignoring the "Upscoop" on the front fender panel.

I've also seen a version where the stripes have a slight rise in them above the fenders. It is absolute MADNESS!

Anyone know what was coming out of the factory in 77? I've seen so many custom jobs my head is spinning.

Any and all posts of inspiring paint jobs would be greatly appreciated.

Hope everyone has an excellent holiday!

Jonnya10

P.S. I will definitely post a pic once all is said and done. I figured you guys have seen enough "half-way sanded" trucks over the years.
Reply With Quote
  #2
Old 12-22-2011, 01:22 PM
grand_wag_85's Avatar
grand_wag_85 grand_wag_85 is offline
Murphy's Law Poster Child

Join Date: Dec 03, 2003
Posts: 10,707
IMO the best paint scheme for J trucks in the 70's was the Golden Eagle.



I have seen a bunch of folks paint the indent down the side where the Wagoneers had a thin stripe of woodgrain. I don't think Jeep ever did that from the factory on the J trucks but it does look good.

__________________
You know it's bad when your car's on the EPA's 10 most wanted list!

'82 J10
'65 J2000

Reply With Quote
  #3
Old 12-22-2011, 02:21 PM
mud89's Avatar
mud89 mud89 is offline
304 AMC

Join Date: Nov 18, 2009
Location: France (burgundy)
Posts: 2,000
In 77 you got :
- the honcho
- a two tone paint with a stripe between
- the pioneer woodgrain
and in 77 1/2 IIRC the golden eagle

lot of stripes for the '79 and '80 honcho, if it's what you want . One of them cover what you call the "upscoop"
__________________
J10 sportside '81, J10 Golden Eagle '77, Wagoneer '65, Gladiator '64 + parts rigs

Last edited by mud89 : 12-22-2011 at 02:31 PM.
Reply With Quote
  #4
Old 12-22-2011, 03:18 PM
fulsizjeep's Avatar
fulsizjeep fulsizjeep is offline
Señor Jackhead

Join Date: Aug 21, 2002
Location: Jubilee Jeeps.SWCO
Posts: 22,284
Quote:
Originally Posted by jonnya10
I've also seen a version where the stripes have a slight rise in them above the fenders. It is absolute MADNESS!
That was a 78/79 thing. Here is a 78.


Here is a 72 thing. They used the stainless strip as the breaking point for color.





In 74, there was a thin decal strip (3/4"?) option that was woodgrain where the stainless strip is but turns down along the front flare. I think that is an early Pioneer trim.


__________________
Flint
Ran when parked.
http://jubileejeeps.org/quadratrac
88 GW, 401/727/208, 5" lift, D44s/4.10s/locked up, 35s with a few Evil Twin & TT's Fabworks mods
76 401 Wag, 77 401 Wag, 77 401 J20
http://eviltwinfab.com http://www.ttsfabworks.com

Last edited by fulsizjeep : 12-23-2011 at 09:17 AM.
Reply With Quote
  #5
Old 12-22-2011, 06:58 PM
Oakknoll's Avatar
Oakknoll Oakknoll is offline
Grease Monkey

Join Date: Feb 18, 2008
Location: Massachusetts
Posts: 303
I know '78 used a decal stripe to seperate the two tone. Mine had an orange stripe seperating the dark brown from the tan. I will try to find a picture.
__________________
Peter

1984 J-10
1982 CJ-8
1982 Wagoneer
2007 Commander
2012 Wrangler
1980 Cherokee (for parts)
Reply With Quote
  #6
Old 12-22-2011, 07:43 PM
jaber's Avatar
jaber jaber is offline
Dragin Az

Join Date: Oct 17, 2003
Location: Chino Valley, Arizona
Posts: 8,061

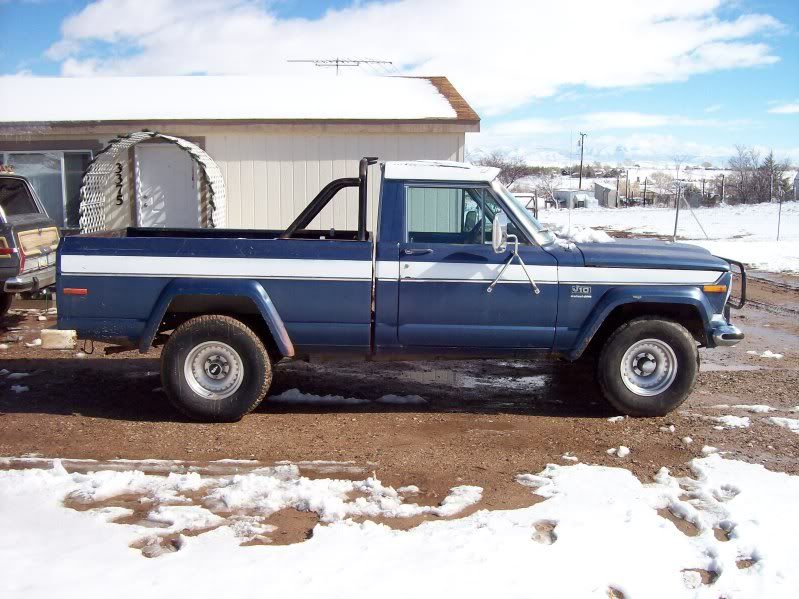

Heres my '77, this was how I got it. If it and the roof was added later, it was well done. It looks like it has always been there.



And now...

__________________
Jeff


46 cj2a

51 Willys p/u
'51 Willys Parkway Conversion
'74 CJ5
'75 J-20 Wrecker
'75 J-20 Cummins service bed
'77 J-10 p/u
'79 Cherokee
'88 Grand Wagoneer
http://s252.photobucket.com/albums/hh14/jeffaber/
Reply With Quote
  #7
Old 12-22-2011, 08:07 PM
MN_Honcho's Avatar
MN_Honcho MN_Honcho is offline
Member

Join Date: Nov 08, 2010
Location: Brainerd, MN
Posts: 103

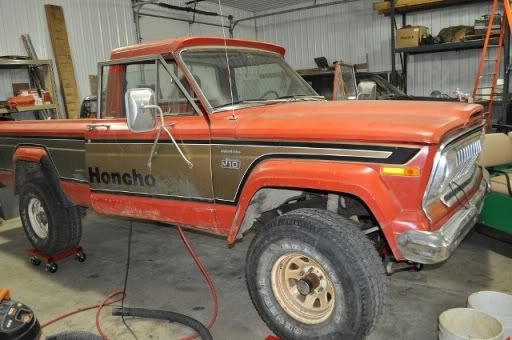

'77 Honcho

Firecracker Red, blue interior, and white Headliner. Finished off with the gold and black Honcho decals (Phoenix Graphics sells a decal kit).



__________________
_____________________________________________
'77 J10 Honcho - Build Thread
'67 Gladiator - Lost cause
Reply With Quote
  #8
Old 12-22-2011, 08:10 PM
Strode's Avatar
Strode Strode is offline
1st Chair, Cowbell

Join Date: Nov 08, 2011
Location: Littleton, Co
Posts: 2,289
Here's my 1980 J10. I bought it new, but I think the "Scorpion" stripes were a dealer added kit. I never saw another one like it.

*Rocking the '80s hair!






I'm going to do some form of those stripes on my '82 Cherokee, I believe. But it won't say "Scorpion".
__________________
Brad
(*Allowed to post while failed 'I am not a Bot' test results are under appeal)

My build thread: 1982 Cherokee Laredo

Ristow's Bunker

Member, FSJ Prissy Restoration Association
Reply With Quote
  #9
Old 12-23-2011, 08:51 AM
fulsizjeep's Avatar
fulsizjeep fulsizjeep is offline
Señor Jackhead

Join Date: Aug 21, 2002
Location: Jubilee Jeeps.SWCO
Posts: 22,284
75 Pioneer. As far as I know, this is the only year the Jtruck got full wood.


This is a little different using the "dart" area for lines.


78 J10 10-4 scheme


My favorite tutone for a Jtruck, 73 J4600:
__________________
Flint
Ran when parked.
http://jubileejeeps.org/quadratrac
88 GW, 401/727/208, 5" lift, D44s/4.10s/locked up, 35s with a few Evil Twin & TT's Fabworks mods
76 401 Wag, 77 401 Wag, 77 401 J20
http://eviltwinfab.com http://www.ttsfabworks.com

Last edited by fulsizjeep : 12-23-2011 at 09:19 AM.
Reply With Quote
  #10
Old 12-23-2011, 11:06 AM
mud89's Avatar
mud89 mud89 is offline
304 AMC

Join Date: Nov 18, 2009
Location: France (burgundy)
Posts: 2,000
i vote also for the two-tones of the early seventies
__________________
J10 sportside '81, J10 Golden Eagle '77, Wagoneer '65, Gladiator '64 + parts rigs
Reply With Quote
  #11
Old 12-23-2011, 01:03 PM
will e's Avatar
will e will e is offline
Always Broke

Join Date: Nov 16, 2001
Location: Mesa AZ
Posts: 9,996
I like the two tone.

DO NOT GO FOR THE WOOD LOOK. YUCK! I had to wash my eyes out from the pain.

If I had a step side there is no doubt in my mind I would go red with the honcho stripes. It just SCREAMS eighties.
__________________
82 Cherokee WT – SFwith Alcan/agr box/Borgeson shaft/ 401/performer/Holley TA/HEI/BeCool/727/ALTAS(2.0/2.72/5.44)/D60 Snofighter(Yukon Zip,hubs,stubs,4.56)/14 Bolt (FF,BF shave,Discs, ARB,Artec Truss)/MTR 37/Corbeau Moab Seats /Hella/tuffy console/sliders/custombumpers&roll bar/WARN 8000/steering brace/CO2 Tank/dual batts/custom TCskid plate





Reply With Quote
  #12
Old 12-29-2011, 03:50 PM
Carnuck's Avatar
Carnuck Carnuck is offline

Join Date: Feb 12, 2011
Location: Gold Bar, WA
Posts: 6,361
This is my current Honcho paint. I plan white with blue flames later. I'll be making measurements of the color/design for one of the shops that makes decals for these rigs before I do.

Reply With Quote
  #13
Old 12-29-2011, 04:10 PM
FSJK FSJK is offline
258 I6

Join Date: Feb 12, 2009
Location: Massachusetts
Posts: 397
This thread might help http://www.ifsja.org/forums/vb/showthread.php?t=140035
Reply With Quote
  #14
Old 12-29-2011, 06:23 PM
REDONE's Avatar
REDONE REDONE is offline
Bleedin' Gasoline

Join Date: Aug 19, 2002
Location: Golden, CO
Posts: 1,752
Quote:
Originally Posted by Oakknoll
I know '78 used a decal stripe to seperate the two tone. Mine had an orange stripe seperating the dark brown from the tan. I will try to find a picture.


I think I gotcha, the orange has faded to a very dull yellow and is about 1/4" thick:


Hey carnuck! I know your truck! I was first on the scene five years ago when it spat the passenger side rear axleshaft on the Mountain loop highway! I'm glad to see it's still alive!
__________________
2012 Winner of the Prestigious Ouray Cast Iron Butt Award
79 J-10 - The Money Badger!
304/T18/D20/D44s
What's been did:
Holley 4160/Ede' S.P.2.P.
MSD Streetfire based TFI
Custom-hack gauge cluster
Razor swap
Fancy exhaust (Thrush Muffler)
2 knob tape deck!
3" homebuilt lift
Half a hillbilly paint job
Reply With Quote
  #15
Old 12-29-2011, 09:06 PM
mrtazwrench's Avatar
mrtazwrench mrtazwrench is offline
FSJ Maniac

Join Date: Nov 10, 2001
Location: s.e. minnesota 55991
Posts: 3,915
Quote:
Originally Posted by Oakknoll
I know '78 used a decal stripe to seperate the two tone. Mine had an orange stripe seperating the dark brown from the tan. I will try to find a picture.

I would love to see this pic, sounds exactly like the 78 J20 my Dad bought new.

The 2 tone of the 75-76/77 looks like the 78's except a bump up over the rear fender flairs.
__________________
Chad
"Let's see that Red Blue Green **** sucker build one of these without duct taping it together!"
https://www.facebook.com/media/set/?...3&l=76427b95fd
88Wag
87J20 Member, FSJ Prissy Restoration Association
83Cherokee WT
82J20
Parts vehicles: 1.5 Wags, 3.5 J20's, 1 J10 1 J300

Last edited by mrtazwrench : 12-29-2011 at 09:21 PM.
Reply With Quote
  #16
Old 01-03-2012, 10:56 PM
azjeeper azjeeper is offline
Member

Join Date: Feb 15, 2010
Location: Arizona
Posts: 32
Quote:
Originally Posted by mud89
i vote also for the two-tones of the early seventies

I agree.
Reply With Quote
  #17
Old 01-04-2012, 08:20 PM
Long&Low's Avatar
Long&Low Long&Low is offline
350 Buick

Join Date: Jan 03, 2008
Location: Geauga County, Ohio
Posts: 819
i like the yellow and white one
__________________
Breakfast amounts to one live toad, I choke that mofo down, and I am rest assured that nothing worse will happen to me for the rest of the day.
___________________________

CJ truck project
'18 Jeep Renegade
'15 Jeep Cherokee
Reply With Quote
  #18
Old 01-06-2012, 11:57 PM
gtrobbJ10's Avatar
gtrobbJ10 gtrobbJ10 is offline
Noob!

Join Date: Dec 25, 2010
Location: Lenoir, NC
Posts: 15
Here's my 77 J10, in 1989 (two black parallel stripes between brown and white):

And here's one from a few weeks ago during removal of rattle can primer:
__________________
1977 J10 - 360, T18a

Last edited by gtrobbJ10 : 01-07-2012 at 12:03 AM.
Reply With Quote
  #19
Old 01-07-2012, 08:40 AM
polarfire's Avatar
polarfire polarfire is offline
258 I6

Join Date: Apr 02, 2010
Location: Missouri
Posts: 302
Quote:
Originally Posted by Carnuck
This is my current Honcho paint. I plan white with blue flames later. I'll be making measurements of the color/design for one of the shops that makes decals for these rigs before I do.


Just FYI, Phoenix Graphix is currently in the process of making a Honcho stripe kit for the '81 - '83 Honcho trucks. They have been looking for someone with a sportside Honcho to get some info from. If you would be interested PM me and I can give you the contact info of the person to get in touch with.
__________________
'78 Cherokee Levi's 4-Door
'84 J10 Shortbed
'83 Cherokee Chief
'82 CJ-8 Scrambler
Member, FSJ Prissy Restoration Association
Reply With Quote
  #20
Old 01-07-2012, 10:52 AM
trickc's Avatar
trickc trickc is offline
Bleedin' Gasoline

Join Date: Nov 29, 2000
Location: covington,ga
Posts: 2,238
I just did my 73 with the scheme from the 72-73 models, that orange and white one, is that the one that traveled around with the Jeep Experience exhibit show a couple years ago? I saw one there and fell in love with it.

Its not finished but you get the picture...
__________________
73 j-4000 "buttercup"-SOA 36's 4 door cab


78 wagoneer choptop-SOA 36's, 6 point cage, blah blah blah

Last edited by trickc : 05-19-2012 at 03:28 PM.
