Deep Transmission Pan

Anyone using an aftermarket deep aluminum pan on their TF? I'd like to, but when I was changing the motor oil this evening in the GW it looked as though access to the pan bolts would be severely restricted by the trans cross member and a deep pan.

Any thoughts?

Thanks
__________________
1989 G. Wag.
360/727/NP229

Completed Mod.:
- Full MSD Ign.
- High Flow Cat. (a new one, anyway)
- Magnaflow Muffler (nice and quiet)

Parts on Hand/In-Process:
- 4" Rusty's Lift (all spring)
- Edel. Performer Intake Man.
- Edel. Ceramic Headers
- Holley Trk. Avg. 670
Reply With Quote
  #2
Old 08-14-2010, 09:40 PM
j20brett's Avatar
j20brett j20brett is offline
360 AMC

Join Date: Jul 05, 2006
Location: Katy, Texas
Posts: 2,963
Most deep pans will hit the crossmember.
__________________
Kaiser - 1981 J20 115" WB - 5.3l/4l60E/np241c/3-link hp60 spooled/Leafs 14-bolt detroit/5.13's/40's

Build Thread

Fight Crime...Shoot Back.

ΜΟΛΩΝ ΛΑΒΕ
Reply With Quote
  #3
Old 08-14-2010, 10:56 PM
dan1488's Avatar
dan1488 dan1488 is offline
Grease Monkey

Join Date: Mar 18, 2006
Location: Springdale,WA
Posts: 341
I have a TCI deep pan and it clears the cross member. Tricky to get a few bolts in though.
__________________
1977 Jeep J-20
1981 Jeep Wagoneer
1984 Jeep GW
1985 Jeep J-10
1986 Jeep GW
1986 Jeep GW
1987 Jeep GW
1987 Jeep GW
1990 Jeep GW white
1997 Jeep GC Orvis
2004 Jeep GC Ltd
2004 Jeep GC Ltd
2004 Jeep GC Overland
2008 Jeep GC Overland diesel
2010 Jeep Commander
Reply With Quote
  #4
Old 08-15-2010, 12:10 AM
HOOT's Avatar
HOOT HOOT is offline
Moderator

Join Date: Mar 28, 2003
Location: Taylor Mill,KY 41015
Posts: 5,592
I have a brand new one in the dining room. Too pretty to install.
__________________
Tom Gibson
1980 J20 Utility bed truck. Factory cab and chassis truck. Many new mods for it but it will look all stock.
1985 J10 nothing special just a nice clean stock truck.
1977 Honcho "Blue" 401/400/quad. Under going major upgrades.."This is Not Your Fathers Honcho", it may not even be a Honcho anymore when done.
2017 Challenger. Very jealous of the Jeeps.
Reply With Quote
  #5
Old 08-15-2010, 06:18 AM
ottocycle's Avatar
ottocycle ottocycle is offline
Member

Join Date: Jun 09, 2010
Location: Texas
Posts: 64
Based on my calibrated eyeball and pictures online, I thought a +2 qt pan (like the TCI) would fit. The +3 and +4 qt pans look like they just hang down too low and would require moving/modifying the x-member, and likely not the best for off-road.

@dan1488 - How tricky are the bolts. Do you have to unbolt the trans mount and jack the transmission, or does it just require regular tools and some swearing?

@HOOT - These wonderful parts only do good things after you install them. Simply possessing them does not make an FSJ any more awesome. Did you get the TCI also?

Thanks
__________________
1989 G. Wag.
360/727/NP229

Completed Mod.:
- Full MSD Ign.
- High Flow Cat. (a new one, anyway)
- Magnaflow Muffler (nice and quiet)

Parts on Hand/In-Process:
- 4" Rusty's Lift (all spring)
- Edel. Performer Intake Man.
- Edel. Ceramic Headers
- Holley Trk. Avg. 670
Reply With Quote
  #6
Old 08-15-2010, 10:54 AM
mark j's Avatar
mark j mark j is offline
Gear Head

Join Date: Jun 07, 2002
Location: Grants Pass, OR
Posts: 683

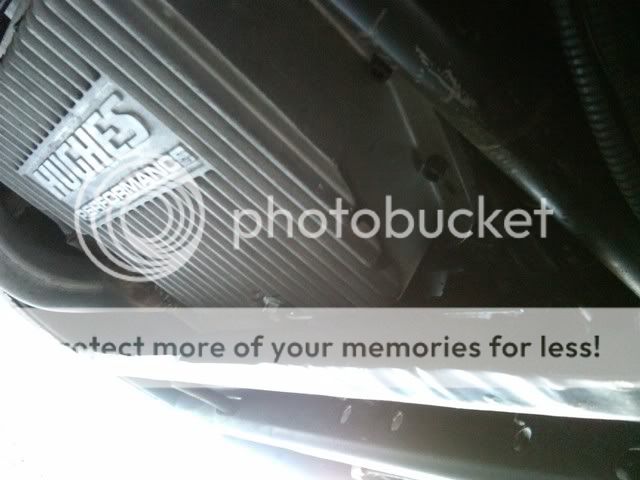

I put a 2 quart Hughes pan on my '89 and had to drill one extra hole in the crossmember to get one of the allen bolts on. Other than that with long allen wrenches- T handle style, you can reach all the others through the factory drilled holes . Sorry for the crappy cell phone pics but this is what the clearance looks like. I did chamfer or round off the cooling ridges close to the crossmember which helped with clearance for the installation. Otherwise once on there was plenty of room. I did not do anything else to get this pan on- too lazy to jack up the tranny or drop the crossmember. No problems and it cured my leak.

__________________
72 wagoneer- My first FSJ
89 G-wag- built 401
09 Rubicon

Last edited by mark j : 08-15-2010 at 10:58 AM.
Reply With Quote
  #7
Old 08-15-2010, 12:03 PM
ottocycle's Avatar
ottocycle ottocycle is offline
Member

Join Date: Jun 09, 2010
Location: Texas
Posts: 64
@ MarkJ - Thanks for the detail and the pics. That's just what I wanted to know. I also have a leak, so I figured I could get a few benefits from a good aftermarket aluminum pan. The socket head cap screws would make clearance a little less of an issue.
__________________
1989 G. Wag.
360/727/NP229

Completed Mod.:
- Full MSD Ign.
- High Flow Cat. (a new one, anyway)
- Magnaflow Muffler (nice and quiet)

Parts on Hand/In-Process:
- 4" Rusty's Lift (all spring)
- Edel. Performer Intake Man.
- Edel. Ceramic Headers
- Holley Trk. Avg. 670
Reply With Quote
  #8
Old 08-15-2010, 06:46 PM
dan1488's Avatar
dan1488 dan1488 is offline
Grease Monkey

Join Date: Mar 18, 2006
Location: Springdale,WA
Posts: 341
It bolts right up no jacking with the transmission, just some swearing with one or two bolts.
__________________
1977 Jeep J-20
1981 Jeep Wagoneer
1984 Jeep GW
1985 Jeep J-10
1986 Jeep GW
1986 Jeep GW
1987 Jeep GW
1987 Jeep GW
1990 Jeep GW white
1997 Jeep GC Orvis
2004 Jeep GC Ltd
2004 Jeep GC Ltd
2004 Jeep GC Overland
2008 Jeep GC Overland diesel
2010 Jeep Commander
Reply With Quote
  #9
Old 08-16-2010, 03:15 AM
Tigger4X's Avatar
Tigger4X Tigger4X is offline
AMC 4 OH! 1

Join Date: Nov 16, 2001
Location: Eugeniastan, Orygun Central Blok
Posts: 4,263
Quote:
Originally Posted by ottocycle

@HOOT - These wonderful parts only do good things after you install them. Simply possessing them does not make an FSJ any more awesome. Did you get the TCI also?

Thanks


WHAAA Maybe I got extra MPGs was because I put my BJs Off-Road stickers ON my !
__________________
Quote:
Originally Posted by will e
Keep in mind. Getting old is easy. Being old is hard.
Post #14 ~ http://www.ifsja.org/forums/vb/showt...=1#post1580206
Reply With Quote
  #10
Old 08-16-2010, 03:54 AM
Snowbird_Hunter's Avatar
Snowbird_Hunter Snowbird_Hunter is offline
Member

Join Date: Aug 25, 2007
Location: Clearfield, Utah
Posts: 204
Quote:
Originally Posted by Tigger4X
WHAAA Maybe I got extra MPGs was because I put my BJs Off-Road stickers ON my !

Those stickers do that I hear .... maybe I should get two
__________________
God made asphalt so yuppies could four wheel, too.


Current Jeep Status: Gone, but not forgotten.
Reply With Quote
  #11
Old 08-16-2010, 04:00 AM
HOOT's Avatar
HOOT HOOT is offline
Moderator

Join Date: Mar 28, 2003
Location: Taylor Mill,KY 41015
Posts: 5,592
Don't remember what brand now. It came from Bulltear. Has the cooling tubes and stuff. At least a 4 qt. pan. this Jeep is a street Jeep for the most part and hanging low is not a problem. The Thorley Tri Y's hang lower than the pan will. I never installed it because the truck got wrecked right after I got it. The tranny wasn't acting right before the wreck either. I didn't want it to go through an install just to be taken back out and reinstalled so it went to the goodie pile. Soon the whole set up is going into a new frame and I'll install it then along with the 8qt oil pan and a truck load of other stuff.
__________________
Tom Gibson
1980 J20 Utility bed truck. Factory cab and chassis truck. Many new mods for it but it will look all stock.
1985 J10 nothing special just a nice clean stock truck.
1977 Honcho "Blue" 401/400/quad. Under going major upgrades.."This is Not Your Fathers Honcho", it may not even be a Honcho anymore when done.
2017 Challenger. Very jealous of the Jeeps.
Reply With Quote
  #12
Old 08-16-2010, 12:34 PM
ottocycle's Avatar
ottocycle ottocycle is offline
Member

Join Date: Jun 09, 2010
Location: Texas
Posts: 64
Quote:
Originally Posted by Tigger4X
WHAAA Maybe I got extra MPGs was because I put my BJs Off-Road stickers ON my !

I got one of those stickers last week. Do ya' think it would help me pass emissions, too, or do the stickers just enable faster speediness and more Em Pee Gees?
__________________
1989 G. Wag.
360/727/NP229

Completed Mod.:
- Full MSD Ign.
- High Flow Cat. (a new one, anyway)
- Magnaflow Muffler (nice and quiet)

Parts on Hand/In-Process:
- 4" Rusty's Lift (all spring)
- Edel. Performer Intake Man.
- Edel. Ceramic Headers
- Holley Trk. Avg. 670
Reply With Quote
  #13
Old 08-17-2010, 12:51 AM
Tigger4X's Avatar
Tigger4X Tigger4X is offline
AMC 4 OH! 1

Join Date: Nov 16, 2001
Location: Eugeniastan, Orygun Central Blok
Posts: 4,263
From what I recall there was some fine print on the back of the stickers that mentioned any actual increase on MPG would vary according to your latitude and the earth's axis in relation to the seasonal equinox.



As far as smog goes, that kinda depends on how long your pitbull's chain is inside your rig.
__________________
Quote:
Originally Posted by will e
Keep in mind. Getting old is easy. Being old is hard.
Post #14 ~ http://www.ifsja.org/forums/vb/showt...=1#post1580206
Reply With Quote
  #14
Old 08-17-2010, 09:27 PM
Blinkinlights's Avatar
Blinkinlights Blinkinlights is offline
Grease Monkey

Join Date: Sep 19, 2004
Location: Edmonton, AB Canada
Posts: 407
Mopar makes a deep stamped metal tranny pan with a drain plug for the 727.

Part number is P3690730-AB Cover 55-210-000

I bought one for $71.65 CAN. If you get a nagging tranny leak afterward, check the dipstick tube o-ring...don't ask me how i know. I dropped the cross member to install the pan.

http://www.monicattichrysler.com/com...?idProduct=191


Greg
__________________
87 Grand Wagoneer 360/727/NP208
BJ's Front and Rear Dozer Bumpers
35x14.5x15 Boggers on 15x10's
Mile Marker H10500 Hydraulic Winch
http://photobucket.com/albums/y174/bANGr/

It's all fun and games until someone breaks a woodie.
Reply With Quote
  #15
Old 10-20-2010, 07:25 PM
ottocycle's Avatar
ottocycle ottocycle is offline
Member

Join Date: Jun 09, 2010
Location: Texas
Posts: 64
I ended up going with the cheapest aluminum pan I could find. The 'no logo' Summit pan shown below:

http://www.summitracing.com/parts/SME-1009R/

Looks just like the Trick Flow pan and has a similar part number, but costs $20 less. Seems to fit well, very similar to the pictures in Mike J's post. I may end up modifying the trans cross member or making a new one because it kind of blocks the drain plug.
__________________
1989 G. Wag.
360/727/NP229

Completed Mod.:
- Full MSD Ign.
- High Flow Cat. (a new one, anyway)
- Magnaflow Muffler (nice and quiet)

Parts on Hand/In-Process:
- 4" Rusty's Lift (all spring)
- Edel. Performer Intake Man.
- Edel. Ceramic Headers
- Holley Trk. Avg. 670
Reply With Quote
  #16
Old 10-21-2010, 06:07 PM
joe joe is offline

Join Date: Apr 28, 2000
Location: PNWet, USA
Posts: 22,392
Quote:
