01-29-2012, 11:05 AM
|
 |
Member
|
|
Join Date: Dec 14, 2011
Location: Texas
Posts: 46
|
|
|
Upcoming Products from 999 Offroad! Shock Towers, Shackle Flip/SOA, Disc brake kits
We just wanted to post some pics of FSJ products we are currently working on and keep everyone updated on what we're doing!
Bolt on front shock mount tower. These towers are 4" taller than stock and allow for the use of longer shocks.
Our shackle flip kits are made from 1/4" steel and are bolt on and require cutting only on the rear of the rear spring. They provide 6 - 6.5" of lift with stock springs. They come with mounting hardware and shackle bushings. Some drilling is required.

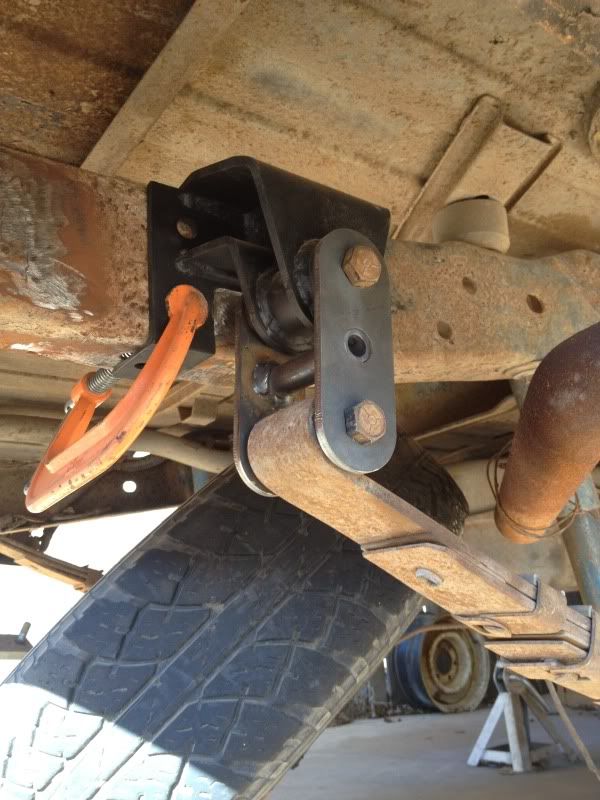

This is our first design for the rear of the rear spring. The final product will look like this one except the mounting flange will be designed differently to allow easy insertion of the shackle bushing. This also shows where the original shackle perch was cut off.

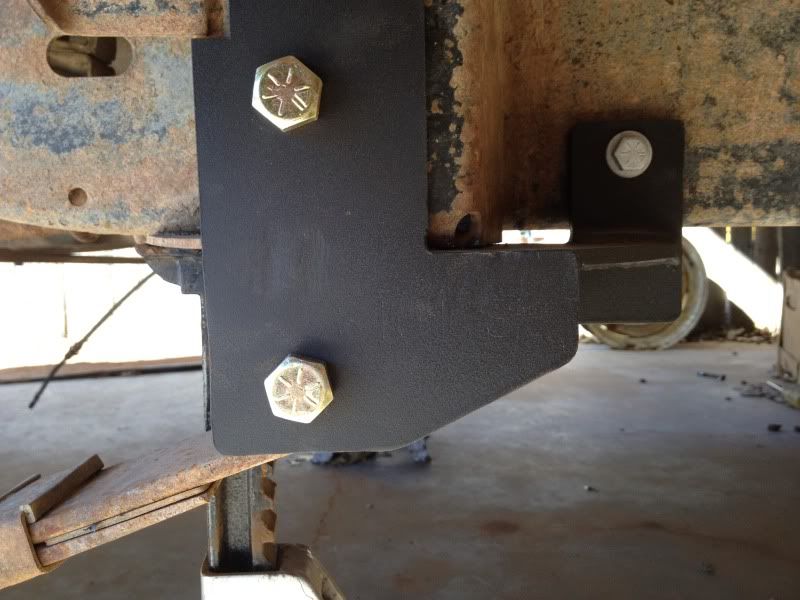

These 2 pics show the front of the shackle flip. It is bolted to the frame in 5 places for exceptional strength. Installation requires no cutting and minimal grinding. (We had to smooth out the bottom of the frame where the new mount bolted on)

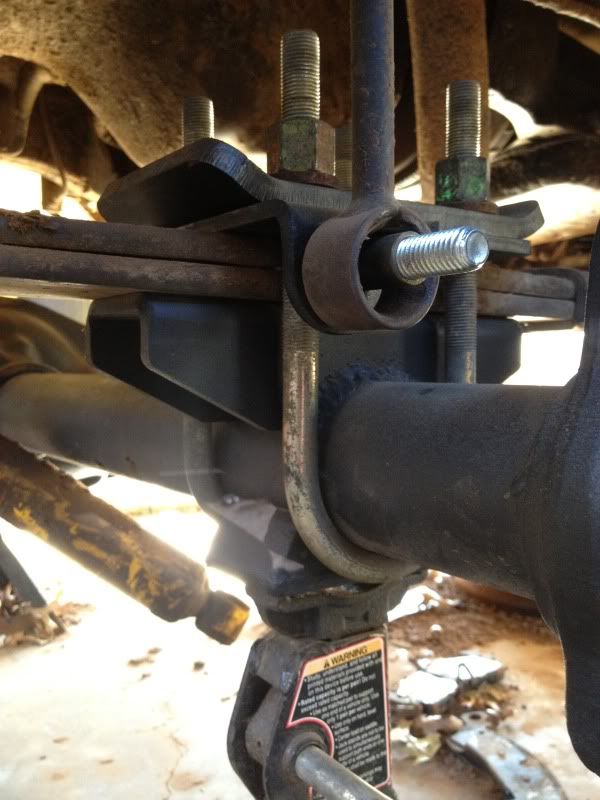

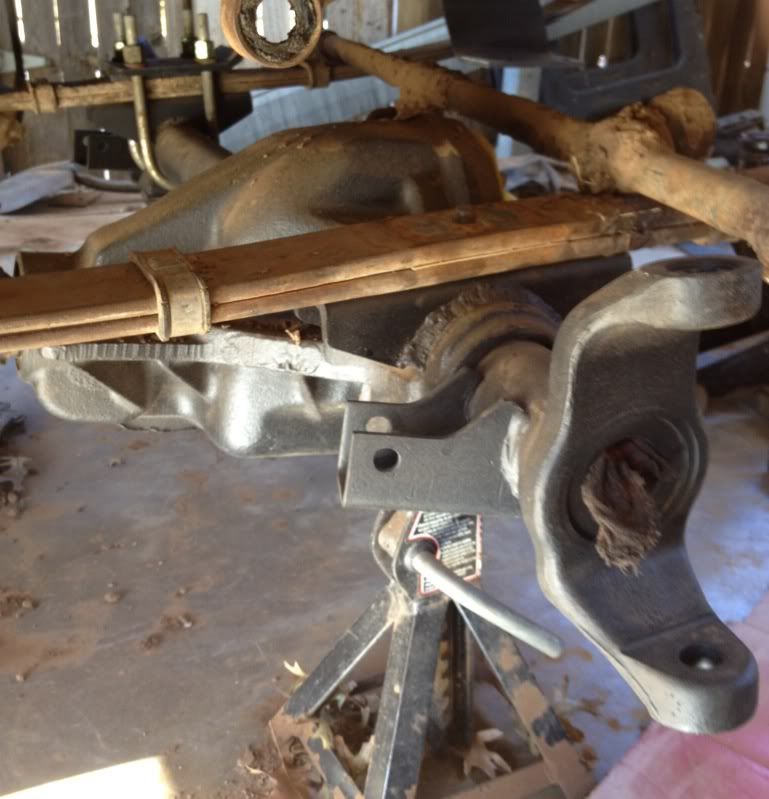

Our Spring Over Axle kits come for Dana 44 front axles. They are made from 1/4" steel and are weld on. They provide approximately 6 - 6.5" of lift with stock springs (depending on stock spring thickness).
Passenger side on 1976 narrow track Cherokee.
Drivers side
Our rear disc brake conversion kits are nearing completion. They come with new calipers with parking brakes, new rotors, 3/8" steel caliper mounts, drum brake backing plate replacement spacer(stainless steel), new hard and soft brake lines, and new brake line brackets. We will make these kits for Dana 44 and AMC 20 rear axles. These pics are of the rear Dana 44 from a 1991 Grand Wagoneer.
Caliper and mounting bracket
Hard and soft brake lines and brackets.
These are all products that are nearing completion but are not quite ready for sale. Just wanted to keep everyone updated and let you know what new products are on the way! |
01-29-2012, 11:10 AM
|
 |
Grease Monkey
|
|
Join Date: Mar 11, 2009
Location: MN
Posts: 331
|
|
|
Looks like the D44 caliper bracket will be a bolt on? That is the main thing that has held me back from doing the D44 conversion, the other kits all have weld on brackets and I dont trust my welding skills that much yet.
__________________
FSJless for now
Looking for an M715
|
01-29-2012, 11:13 AM
|
|
Member
|
|
Join Date: Dec 14, 2011
Location: Texas
Posts: 46
|
|
Quote:
|
Originally Posted by InfiniteWisdumb
Looks like the D44 caliper bracket will be a bolt on? That is the main thing that has held me back from doing the D44 conversion, the other kits all have weld on brackets and I dont trust my welding skills that much yet.
|
Yep, they're bolt on! |
02-19-2012, 01:34 AM
|
|
New Member
|
|
Join Date: Dec 15, 2010
Location: McChord AFB
Posts: 4
|
|
|
How much do you think the rear disk conversions will run?
|
02-20-2012, 05:11 PM
|
 |
Grease Monkey
|
|
Join Date: Feb 22, 2011
Location: Lynchburg, VA
Posts: 460
|
|
Quote:
|
Originally Posted by stubs85
How much do you think the rear disk conversions will run?
|
2x??
__________________
88 Grand Wag:
Razor Grille
Rusty's 4" spring lift
BJs HD 1" shackles
31" M/Ts
Holley 4160, 600cfm
T.F.I.
Warn Hubs
SOLID Diff cover
999 X-member/T-case Skid
Rag joint delete
|
02-20-2012, 08:47 PM
|
|
Member
|
|
Join Date: Dec 14, 2011
Location: Texas
Posts: 46
|
|
Quote:
|
Originally Posted by stubs85
How much do you think the rear disk conversions will run?
|
We are looking at around $450 right now. We are working on adding custom parking brake cables to the kit and that will raise the price. Our kits will come with EVERYTHING you need for install. |
02-26-2012, 06:20 PM
|
 |
Gear Head
|
|
Join Date: Feb 15, 2010
Location: Tucson AZ
Posts: 553
|
|
|
Will you still be able to run the stock rim size or have to get bigger, and how much bigger?
__________________
1984 GW
360/727/208/ Edl 1406/ Custom exhaust
Future
Something Sweet with mean capabilities  .
|
02-27-2012, 05:14 PM
|
|
Member
|
|
Join Date: Dec 14, 2011
Location: Texas
Posts: 46
|
|
Quote:
|
Originally Posted by blkwarrior
Will you still be able to run the stock rim size or have to get bigger, and how much bigger?
|
Yep, you can run stock rims! That's what we used to design the kit. |
02-27-2012, 06:20 PM
|
 |
Bleedin' Gasoline
|
|
Join Date: Feb 07, 2006
Location: Toms River, New Jersey
Posts: 2,082
|
|
|
Are these the Caddy calipers you're going to be using?
__________________
Jeeps are Jeeps, keep Jeepin
>It's not about the ten hour drive to get the rust bucket jeep, it's about where your your going when it's done
91GW Promar 360 .030.9.5:1 MTA1 cam MSD Edelbrock 2131 Skip White HEI Holley4160 RC 2 in lift 31's Cobra CB custom bumper and 10k winch
1994 F150 for haulin stuff
|
03-04-2012, 06:15 AM
|
 |
FSJ Maniac
|
|
Join Date: Oct 11, 2006
Location: Somewhere in the swamps of Jersey
Posts: 3,510
|
|
Quote:
|
Originally Posted by jeepfan93
Are these the Caddy calipers you're going to be using?
|
Lou, they look like GM metric calipers found on '80's GM cars. A little smaller than the '76 era Caddy's and typical ch*vy/Jeep fronts. The parking brakes are known to stink on them.
JR
__________________
[quote] "How does someone from Iran have a BJ's Offroad sticker but I can't seem to get one sent to New Jersey???!!!"
1980 Honcho Sportside w/37's, 351c, 14" lift, D44high pinion w/Aussie, crossover steering, 14b w/detroit, np435, 205, 5.13's, 4whl discs, hb brakes, OBAir, rusted out cab,
1966 mustang fastback
'07 Dodge Charger 3.5
Last edited by Headhoncho : 03-04-2012 at 06:18 AM.
|
03-21-2012, 06:18 PM
|
 |
FSJ Maniac
|
|
Join Date: Dec 11, 2004
Location: Byron, MI
Posts: 4,419
|
|
|
Any update on the brake kits? Are you using the bigger early calipers or the smaller metric calipers?
__________________
Quote:
Originally posted by Ristow flowmasters sound like canned crap they're all built the same, just the higher numbers put the crap in a bigger can.
|
|
03-21-2012, 07:43 PM
|
 |
FSJ Maniac
|
|
Join Date: Feb 12, 2011
Location: Lynnwood, wa
Posts: 2,883
|
|
Are these swaybar mounts going to be available separately? MJ guys would love them for rear shock mounting when they do SOA (It's what I did with mine)
|
04-13-2012, 06:27 PM
|
 |
Gear Head
|
|
Join Date: Jan 05, 2006
Location: Missouri
Posts: 522
|
|
|
Any updates on the brakes?
__________________
Remember; When it comes to tools and toys forgiveness is ALWAYS easier than permission!
|
05-17-2012, 07:35 PM
|
|
Member
|
|
Join Date: Dec 14, 2011
Location: Texas
Posts: 46
|
|
Quote:
|
Originally Posted by Mr. Goatman
Any updates on the brakes?
|
Sorry no. We've been building a new shop and we have not been able to work on anything. We should be back up and running soon! |
08-26-2012, 09:42 PM
|
 |
Member
|
|
Join Date: Oct 01, 2010
Location: Reisterstown,MD
Posts: 31
|
|
|
How much is the SOA/ Shackle flip cost?
__________________
Just
Empty
Every
Pocket
1982 J10
AMC 258- HEI Ignition, Clifford intake, Edlebrock 500cfm 4 barrel carb, mild cam
T18 4 speed, Dana 44 front, AMC HD20 rear
31x10.5x15 m/t's
****** _,o000o
_____I_l,\____\,__
l_/--\__l__l----0lllllll0
_(o)_)__(o)_)--o-)_)___
|
09-12-2012, 07:49 PM
|
|
Grease Monkey
|
|
Join Date: Jul 12, 2010
Location: Baltimore
Posts: 461
|
|
Quote:
|
Originally Posted by 82jten
How much is the SOA/ Shackle flip cost?
|
x2 whats up with this stuff?
__________________
Baltimore
1991 Grand Wagoneer, Rebuilt 360, Eddy Perf Manifold, Razor Grill
1970 Plymouth 'Cuda (my baby)
|
09-12-2012, 10:15 PM
|
|
FSJ Maniac
|
|
Join Date: Feb 12, 2011
Location: Lynnwood, wa
Posts: 2,883
|
|
shop isn't finished yet (will be soon) Try getting permits for a manufacturing business these days.  |
12-24-2012, 08:27 PM
|
|
Member
|
|
Join Date: Oct 01, 2010
Location: Reisterstown,MD
Posts: 31
|
|
|
So anything going on with the shackle flip/soa?
__________________
Just
Empty
Every
Pocket
1982 J10
AMC 258- HEI Ignition, Clifford intake, Edlebrock 500cfm 4 barrel carb, mild cam
T18 4 speed, Dana 44 front, AMC HD20 rear
31x10.5x15 m/t's
****** _,o000o
_____I_l,\____\,__
l_/--\__l__l----0lllllll0
_(o)_)__(o)_)--o-)_)___
|
12-29-2012, 12:40 PM
|
|
Member
|
|
Join Date: Dec 14, 2011
Location: Texas
Posts: 46
|
|
Quote:
|
Originally Posted by 82jten
So anything going on with the shackle flip/soa?
|
It's one of the projects we are working on right now. We're refining our original design. |
01-14-2013, 09:10 AM
|
|
Member
|
|
Join Date: Dec 14, 2011
Location: Texas
Posts: 46
|
|
Quote:
|
Originally Posted by 82jten
How much is the SOA/ Shackle flip cost?
|
We are going to be working on our shackle flip and SOA starting this week or next. I'm going to have to get back to you on price. It'll depend on how much material we end up using and what kind of price we can get for u bolts. |
